Unitron Zoom HD Digital Macro Zoom Inspection Microscope 14710-TS

Description

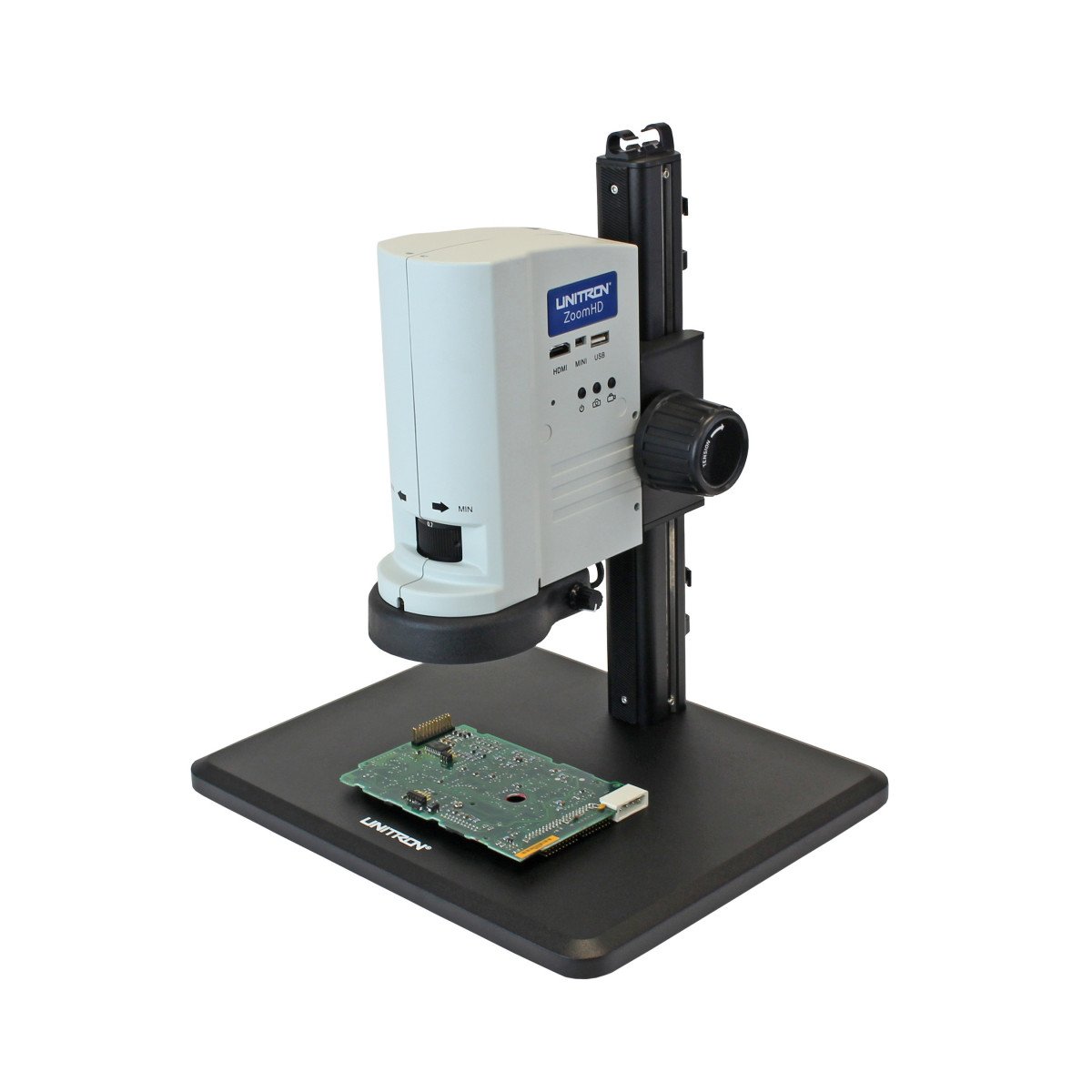

Unitron Zoom HD Digital Macro Zoom Inspection Microscope on a track stand

Live HD Images for Rapid Inspection

The 2.0 megapixel CMOS camera of the ZoomHD delivers crisp, sharp images for lightning-fast live viewing or captured photos. The ZoomHD connects to any HD monitor with its included HDMI cable. Wide Dynamic Range (WDR) enables visualization of more detail in the sample.

Wide 7:1 Zoom Range

The ZoomHD offers a 0.7x – 5.0x magnification range with click stops at 1x, 1.5x, 2x, 3x, 4x and 5x. Magnification can be easily adjusted on the front of the microscope.

Integrated LED Ring Light

A ring light is integrated into the ZoomHD microscope. 56 bright LEDs
provide brilliant, even illumination across the field of view. Use the adjust-able intensity to provide the right amount of illumination for your sample.

On-screen Camera Control With Optional Monitor — No PC required!

The ZoomHD features built-in camera that can be readily controlled using just the included wireless mouse. Save images directly to a user-supplied USB flash drive. No need for a PC!

Specifications

• Zoom Body: Zoom lens 0.7x—5x with click stops
• Objectives: 1x objective (included; CAT # 147-15-01), W.D. 110mm. 0.5x objective (optional; CAT # 147-15-05), W.D. 170mm.
• Illumination: Integrated LED ring light with 56 bulbs, adjustable intensity, color temperature 5000-5500K
• Camera: Built-in 2.0 MP CMOS camera with WDR image
• Input / Output Modes: HDMI Output ● 2 x USB 2.0
• Included: HDMI cable for connecting optional HD monitor; wireless mouse
• Storage: user-supplied USB flash drive (required for image capture). 128GB maximum.
• Stand: Large, plain base, total focus range 225mm
• Monitor Format: HD ready – monitor not included
• Power Supply: 100/240v; 50/60Hz; 12V, 3.3A power consumption
• Dimensions: Stand: 260mm X 320mm X 352.5mm (LWH) with standard 1.0x objective
• Requires HD monitor (not included)
