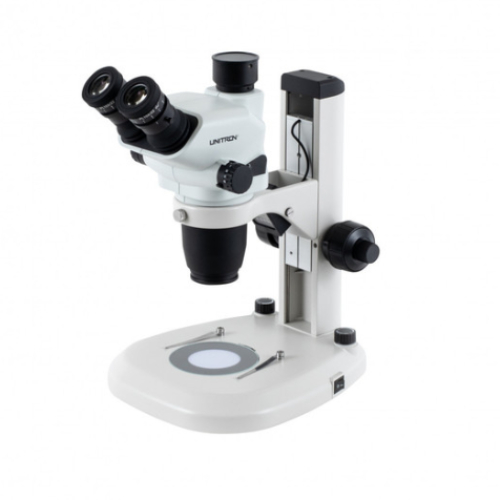

Unitron Z645 Trinocular Zoom Stereo Microscope on Coaxial Coarse/Fine Focusing LED Stand 13539

Description

Trinocular viewing head, 0.67x to 4.5x zoom range, inclined at 45º, 110mm working distance, interpupillary distance adj. 52-76mm, glass lens shield. Widefield 10x eyepieces with built-in diopter adjustment (paired), 22mm field of view. Variable LED incident (12v/2w) and transmitted (12v4w) focusing stand with stage clips, universal power supply. Frosted, clear glass, 100mm black & white stage plates. Includes dust cover and manual.

Specifications

• Trinocular viewing head with 45° viewing angle
• 1.0x glass lens shield
• Fixed 50:50 light split, eyepieces:camera port
• 1.0x glass lens shield
• Widefield 10x/22mm focusing eyepieces
• 0.67x – 4.5x zoom magnification range
• 6.7:1 Zoom ratio
• Magnification range 6.7x-45x (with 10x eyepieces), with click stops at 0.67, 0.8, 1, 1.2, 1.5, 2, 2.5, 3, 3.5, 4 and 4.5; with adjustable zoom range limits
• Interpupillary Distance Adjustment 52mm – 76mm
• Field of view 32.8mm – 4.8mm (1x or no auxiliary lens)
• 110mm working distance (1x or no auxiliary lens)
• Coaxial Coarse/Fine Focusing LED stand with variable LED incident (12v/2w) and transmitted (12v4w) illumination, with stage clips
• 100mm Clear glass, black & white stage plates
• Base dimensions (LWH): 240mm x 292mm x 318mm
• Universal power supply 100v to 240v, voltage sensitive, integrated
• Airtight and anti-mold design
• Shipping weight 15lbs.
