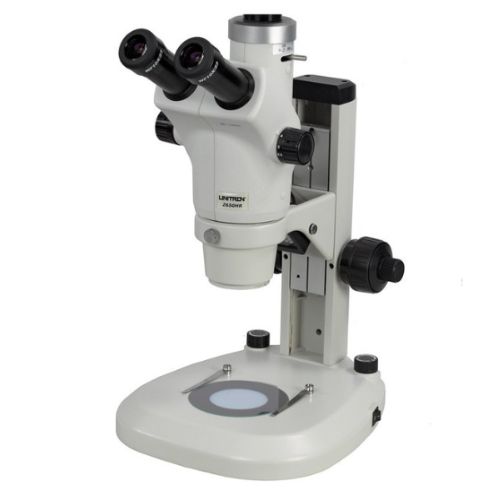

Unitron Z650 Trinocular High Resolution Zoom Stereo Microscope on Coaxial Coarse/Fine Focusing LED Stand 13439

Description

Trinocular viewing head, 0.6x to 5.0x zoom range, inclined at 30°,115 mm working distance, interpupillary distance adj, 52-75mm, glass lens shield WF 10x eyepieces with built-in diopter adjustment (paired) 23mm field of view, 0/100 light split, with 0.55x built-in c-mount lens, or remove to become a 1x c-mount. Variable LED incident (12v/2w) and transmitted (12v4w) coaxial coarse & fine focusing stand with stage clips, universal power supply 100mm. Frosted, clear glass, black & white stage plates. Includes dust cover and instruction manual.

Specifications

• Trinocular viewing head inclined at 30°
• 0/100 light split
• Built-in 0.55x c-mount camera adapter
• Widefield 10x/23mm focusing eyepieces with roll down eyeguards
• 0.6x – 5.0x zoom magnification range
• 8:1 zoom ratio
• Magnification range 6x-50x (with 10x eyepieces), with click stops at 1x, 2x, 3x, 4x and 5x
• Interpupillary Distance Adjustment 55mm – 75mm
• 115mm working distance
• Coaxial Coarse/Fine Focusing LED stand with variable LED incident (12v/2w) and transmitted (12v4w) illumination, with stage clips
• 100mm Clear glass, black & white stage plates
• Base dimensions (LWH): 240mm x 292mm x 318mm
• Universal power supply 100v to 240v, voltage sensitive, integrated
• Airtight and anti-mold design
• Shipping weight 17lbs.
• *NOTE: Does not include Camera
