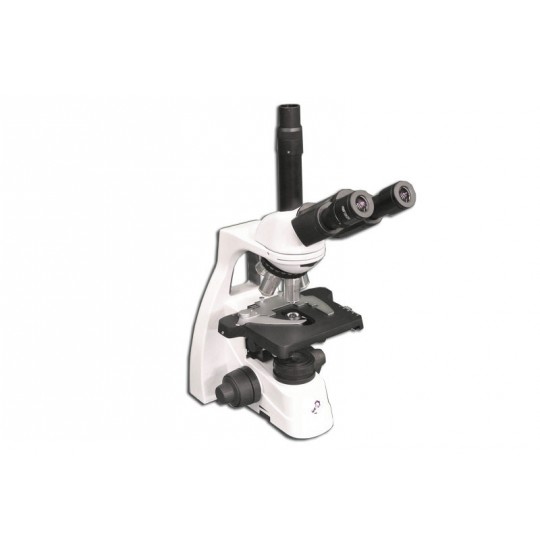

Meiji MT-430 Trinocular Laboratory Microscope

Description

The Meiji MT-430 trinocular laboratory microscope features:

Viewing Heads
• Trinocular 30° inclined tube
• Interpupillary distance adjustment 48-76mm
• 360° degree rotatable
• 16mm filter tray

Eyepieces
• Paired HWF 10x/20mm F.O.V. 23.3mm eyepiece
• Integrated diopter adjustment

Objectives
• Infinity Corrected Plan Achromat 4X/N.A. 0.10, 10X/N.A. 0.25, 40X/N.A. 0.65 spring loaded, 100X oil N.A. 1.25, 180mm tube length
• Spring loaded objectives
• All optical parts are anti-fungus treated, for humid and tropical climates

Nosepiece
• Revolving quintuple reversed nosepiece on ball-bearings, RMS threads

Stage
• 152 mm x 131 mm stage
•  Integrated mechanical stage
•  X-Y movement of 75 mm x 36 mm rackless stage
•  Locked-on spring loaded stage clip (paired)

Condenser
•  Abbe condenser, N.A. 1.25
•  Slider housing for sliders and pinion for vertical movement

Focusing Adjustment
•  Coaxial coarse and 200 µm fine adjustments, 2 µm precision
•  Friction adjustment
•  Rack and pinion focusing with slip clutch and tension adjustment
•  “Slip-clutch” system protects against over-focusing

Illumination
•  3 W intensity adjustable LED illumination with internal power supply/charger
•  Auto voltage sensing power supply, 100-240V
•  Rechargeable batteries is optional for cordless operation

C-mounts
•  MA1091 – C” mount adapter 0.37X lens for MT-430
•  MA1092 – C” mount adapter 0.5X lens for MT-430
•  MA1093 – C” mount adapter 0.75X lens for MT-430

Frame
•  Rugged, cast metal frame with triangular footprint design
•  White enamel paint finish, chemical resistant finish
•  Ability to attach a Kensington Security Lock
•  Cable Storage System
•  Easy Carrying Grip Assembly
•  23.2 mm Photo Port
