Description

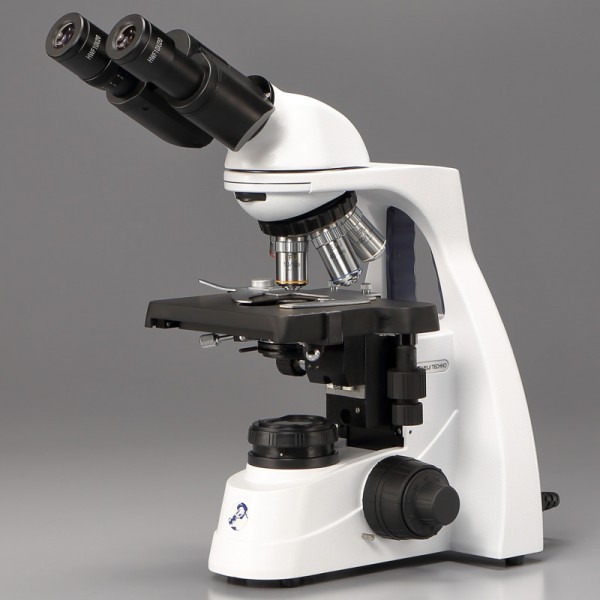

MT-420 Info:
Viewing Heads
• Binocular 30° inclined tube
• Interpupillary distance adjustment 48-76mm
• 360° degree rotatable
• 16mm filter tray
Eyepieces
• Paired HWF 10x/20mm F.O.V. 23.3mm eyepiece
• Integrated diopter adjustment
Objectives
• Infinity Corrected Plan Achromat 4X/N.A. 0.10, 10X/N.A. 0.25, 40X/N.A. 0.65 spring loaded, 100X oil N.A. 1.25, 180mm tube length
• Spring loaded objectives
• All optical parts are anti-fungus treated, for humid and tropical climates
Nosepiece
• Revolving quintuple reversed nosepiece on ball-bearings, RMS threads
Stage
• 152 mm x 131 mm stage
• Integrated mechanical stage
• X-Y movement of 75 mm x 36 mm rackless stage
• Locked-on spring loaded stage clip (paired)
Condenser
• Abbe condenser, N.A. 1.25
• Slider housing for sliders and pinion for vertical movement
Focusing Adjustment
• Coaxial coarse and 200 µm fine adjustments, 2 µm precision
• Friction adjustment
• Rack and pinion focusing with slip clutch and tension adjustment
• “Slip-clutch” system protects against over-focusing
Illumination
• 3 W intensity adjustable LED illumination with internal power supply/charger
• Auto voltage sensing power supply, 100-240V
• Rechargeable batteries is optional for cordless operation
Frame
• Rugged, cast metal frame with triangular footprint design
• White enamel paint finish, chemical resistant finish
• Ability to attach a Kensington Security Lock
• Cable Storage System
• Easy Carrying Grip Assembly
• 23.2 mm Photo Port
Dimensions:
Normal Configuration: Length 14” x Width 8” x Height 15.5”
Head Rotated 180° for Storage: Length 9.5” x Width 6” x Height 15.5”
